wireless nestbox inspection camera - 6B

PRODUCT DESCRIPTION:

I have designed this Wireless Nest Box Camera specifically for Australian Wildlife & Educational applications. It is ideal for peeking inside nest boxes or tree hollows and also provides a safe non intrusive method of checking active nests for eggs or chicks. Camera transmits live color video from the tree tops for safe viewing on the LCD Monitor at ground level. Multiple LCD Monitors can be used allowing groups of people to view the live video from a single Nestbox Camera. The camera transmits wirelessly so there are no annoying cables to get snagged up in the tree branches. Ideal for Nestbox Surveys, Landcare Groups, Outdoor Education, University & Wildlife Managers.

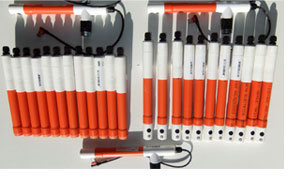

Proudly manufactured in Victoria. PVC camera housings are extruded & machined in my Mornington workshop where electronic assembly & testing also takes place. I have over 30 years experience designing & manufacturing remote wildlife monitoring systems and am now semi retired. I support Landcare & offer all Landcare Groups discount pricing.



ABOUT THE CAMERA:

Nest Box Camera features a 1200TVL resolution Super HAD sensor with glass objective lens (not a cheap plastic lens). A single LED (light emitting diode) provides wildlife eye safe soft white light illumination for the camera.

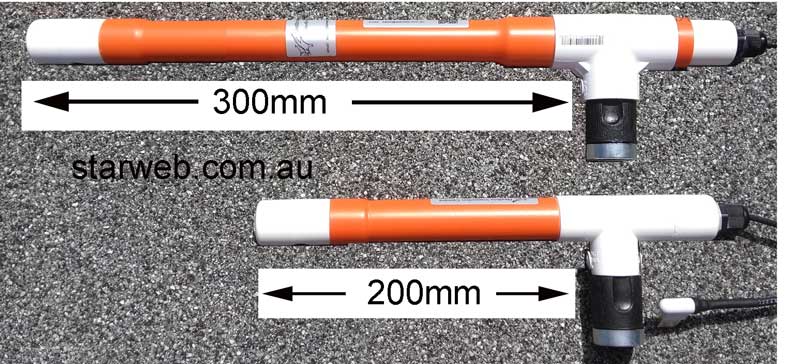

The compact & lightweight camera has 200mm of forward projection (refer photo above) & a maximum diameter of 28mm making it suitable for use with most standard species nest boxes. I do offer custom made to order cameras with extended reach or other options, please ask. The camera has a field of view of 70cm x 40cm at a distance of 25cm & can even be readily converted to a UPWARD LOOKING CAMERA by rotating the camera tube 180° making it suitable for Bat Boxes. Mounting port is threaded 3/4" x 5TPI and screws onto painter's extension poles.



LCD MONITOR/ RECORDER - 6B:

The 6B Monitor has a 12cm LCD screen to view the live video from the Nest Box Camera. It also records photos or video saved to a micro SD card. Importantly all image files are imprinted with date/ time of capture allowing identification of where they were taken.

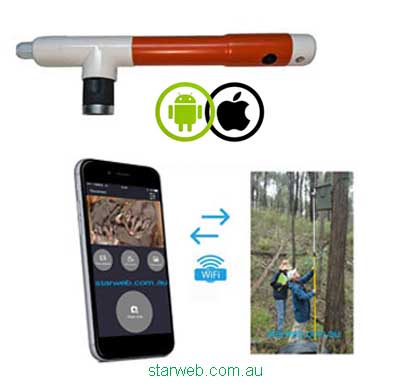

Our Nest Box Camera transmits on a local area - open access wireless network allowing multiple Monitors to connect and view the live streaming video simultaneously; ideal for school groups.

A sun shade also assists when using the monitor outdoors in bright sunshine.

6B Monitor has an internal rechargeable battery that provides hours of use. Can be charged in the field using your in vehicle 5volt / 2 amp mini USB car phone charger. LCD screen size measured diagonally. (LCD Monitor is imported - there are no Australian manufacturers of this product.)

SMART BATTERY PACK:

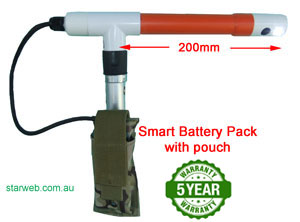

The Camera is powered by a rechargeable Smart battery pack that is housed in a nylon pouch secured near the top of your extension pole using two cable ties. A fully charged Smart battery will provide up to 7 hours of camera run time. Additional Smart batteries can be purchased if you require extended run time.

The four led display indicates battery "state of charge", intelligent circuitry prevents over charging or excessive discharge. Smart battery can be charged in the field in under 3 hours using your in vehicle 5volt / 2 amp micro USB car phone charger.





PROTECTIVE CASE - eco friendly:

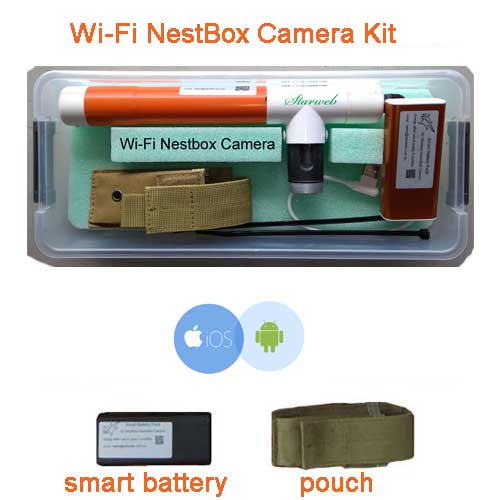

Your Wireless Nest Box Inspection Camera is supplied in a compact storage case. We use this eco friendly case because it is constructed from polypropylene, the most commonly used recyclable plastic and manufactured in the United Kingdom.

Clear lid allows allows at a glance to easily identify the contents, case lid is secured by two clasps. Handy for keeping all the components together during storage & transportation.

EXTENSION POLES:

The Nestbox Inspection Camera screws onto any extension pole with a 3/4" x 5TPI male thread, like most painter's poles.

For heights up to 5 metres: Bunnings have an extension pole that extends from 1.8 ~ 3.6 metres & costs under $40 click HERE.

For heights up to 9 metres: If you require more reach then this $350 carbon fibre 9 metre long extension pole may suit, click HERE: You will need to send us the euro threaded cone that is supplied with this pole & we will modify it to fit our Nest Box Camera mount for an extra $45.

NOTE - We do not supply extension poles.

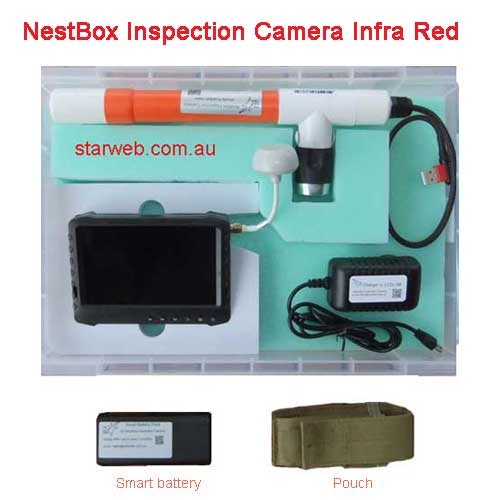

WHAT IS INCLUDED:

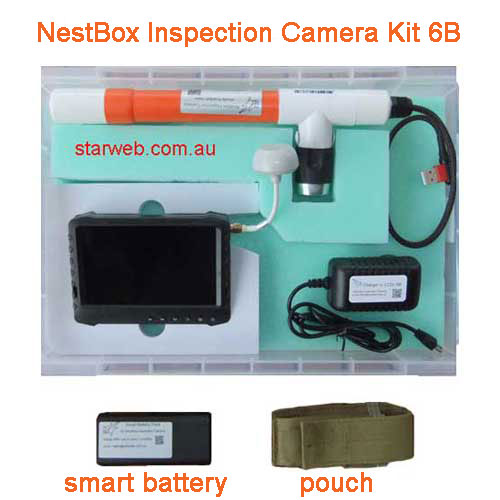

Wireless Nestbox Inspection Camera 6B kit includes the following items:

• Nest Box Inspection Camera

• Smart Battery pack with nylon pouch

• LCD 6B Monitor/ Recorder with 12cm LCD screen

• 16GB Micro SD Card / Monitor charger 240 volt

• Recyclable Polypropylene Carry case



We DO NOT SUPPLY Extension poles

Wireless Nestbox Inspection Camera 6B - $1,235.00



nestbox camera Education KIT 7B:

Our "Education Kit 7B" is designed for schools & outdoor educators.

The Kit Includes: 1 x Wireless Nest Box Inspection Camera complete with Smart battery & cordura nylon pouch for mounting the battery onto your extension pole.

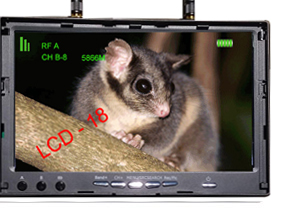

In place of the usual 12cm 6B Monitor we supply THREE LCD MONITORS with larger 18cm display screens, suitable for viewing by several people at once. Large screen with its built in sunshade is easier for students to share & easier to see in the field. These LCD Monitors may or may not have recording capability, they do not have date/ time imprint. A mains power plug pack charger is supplied for the LCD Monitors.

Smart battery can be charged in the field in under 3 hours using your 5volt / 2 amp car phone charger. A smart battery charger is not supplied.

Comes packed in an eco friendly case constructed from polypropylene, the most commonly used recyclable plastic and manufactured in the United Kingdom.

Education Kit 7B costs $1,685.00 plus $65 postage & insurance.





DOWNLOAD RESOURCES:

USER MANUAL - Wireless Nestbox Inspection Camera - 6B

USER MANUAL - Nestbox Education Kit - 7B

NESTBOX FACT SHEET - General Guide

Your enquiries are most welcome.

EMAIL US
